Tetral B

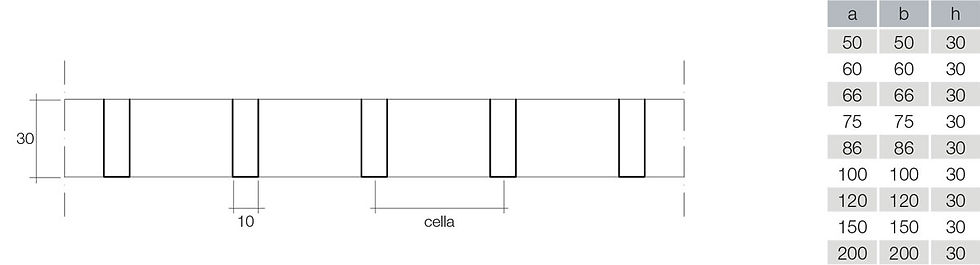

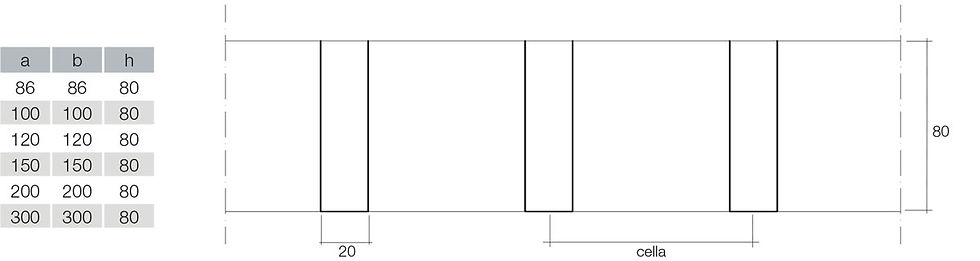

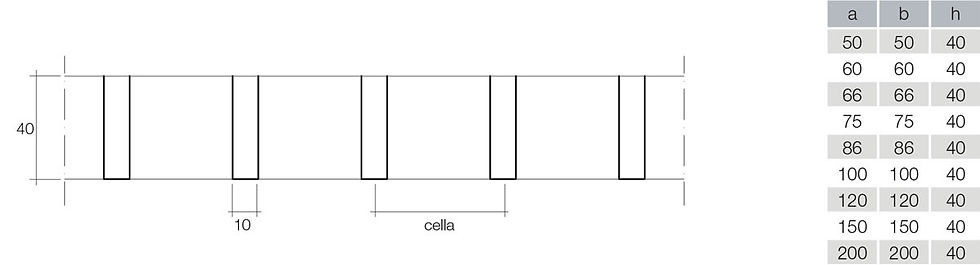

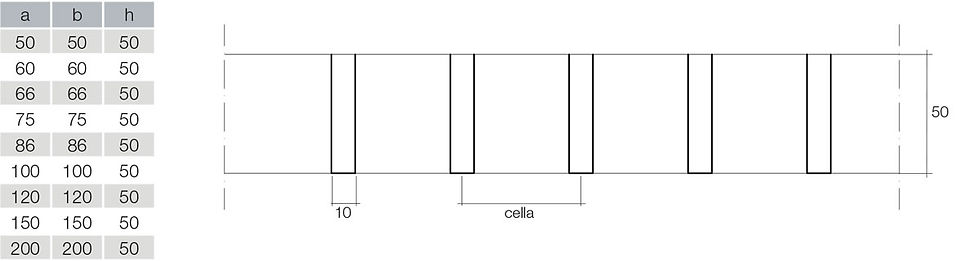

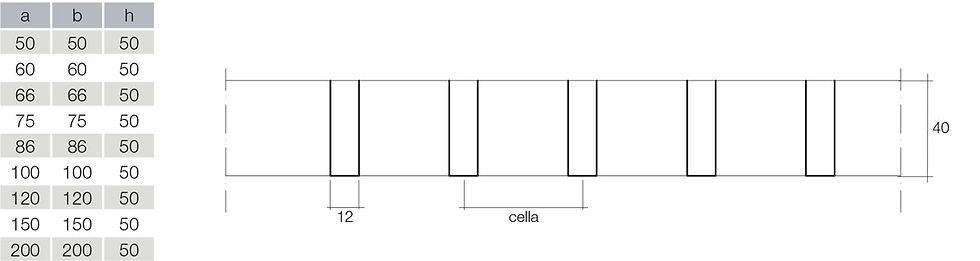

TETRÁL b is the aluminium open cell ceiling inspi- red in the classic wooden grid , made up of “U” shaped profiles with a base and height depending on application.

​

The multiple choice of type, cell size and finish offers designers and architects a host of possibili- ties in line with the criteria of integrated architectu- re. The concealed suspension system, with main and cross runners made from the same profiles as the panels, gives a perfect and trackless appearan- ce.

​

TETRÁL b blades are made by BENDING SYSTEM, which gives: the accuracy of profiles, more square edges and blades perfectly straight. TETRÁL b can be supplied either plain or perfora- ted, to achieve aesthetic and acoustic require- ments.

​

Hole ø 1,50 mm, 22% free opening, 3 mm pitch.
Hole ø 2,50 mm, 19% free opening, 5 mm pitch.

​

A wide range of finishes either from pre-painted or post-painted aluminium is available, according to the RAL, NCS, PANTONE and SIKKENS colours.

​

TETRÁL b is usually supplied unassembled. It allows for easier packages and more economic transports. Upon request, the panels can also be supplied assembled.

​

CEIR open cell ceilings are classified incombustible in compliance with international standards.
